VAG camshaft tool set EA888, 1.8, 2.0, TSI, TFSI ENGINES US7245

Camshaft locking and timing setting tool kit designed for adjusting the timing and crankshaft position.

Designed for VAG EA888 1.8, 2.0 TSI / TFSI engines from 2006 to 2018, 1.8 R4 16V TSI/TFSI and 2.0 R4 16V TSI/TFSI.

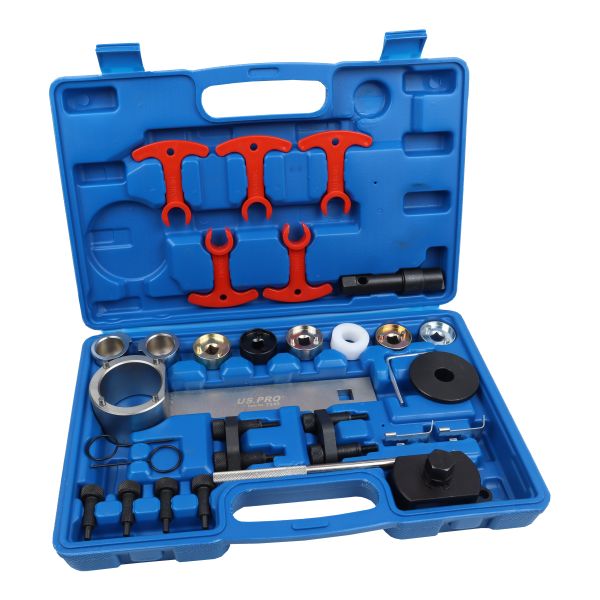

Contents:
5 pcs camshaft sliding part gap tools (PP)
5 pcs camshaft control valve removal tools (black, nickel, zinc, and brass colors)
1 pc crankshaft locking tool (PE)
1 pc exhaust system mounting tool (black color)
2 pcs camshaft adapter sockets (chrome-plated)
1 pc crankshaft support tool (nickel color)
1 pc 4 mm zinc finish tensioner locking pin
1 pc black finish crankshaft seal
2 pcs tensioner locking pins 1.4 mm (black finish)
2 pcs camshaft locking pins (black finish)
2 pcs chain tensioner locking shims (zinc finish)
4 pcs camshaft locking pins (black finish)
1 pc chain tensioner locking tool (nickel finish)
1 pc intake manifold mounting tool (black finish)

Original manufacturer references:
T10355A, T10352, T10352/1, T10352/2, T10352/3, T10352/4, T10368, T10354, T10060A, T40011, T40098, T40266, T40267, T40191, T40196, T40271

Engine codes:
BYT, BZB, CABA, CABB, CABD, CADA, CAEA, CAEB, CAWA, CAWB, CBFA, CCTA, CCZA, CCZB, CCZC, CDAA, CDAB, CDHA, CDHB, CDNB, CDNC, CDND, CESA, CETA, CFKA, CGYA, CJEB, CJBA, CJSB

Applications:
2008–2013 Audi A3 2.0T
2009–2013 Audi A3 quattro 2.0T
2009–2015 Audi A4 2.0T / quattro 2.0T
2010–2015 Audi A5 2.0T / quattro 2.0T
2012–2015 Audi A6 2.0T / quattro 2.0T
2011–2015 Audi Q5 2.0T
2009 Audi TT 2.0T / TT Quattro 2.0T
2013–2015 Audi Allroad 2.0T
2012–2013 VW Beetle 2.0T
2009–2015 VW Eos 2.0T
2008–2014 VW Golf GTI 2.0T
2008–2013 VW Jetta 2.0T
2008–2010 VW Passat B6 2.0T
2009–2015 VW Tiguan 2.0T
2009–2015 VW CC 2.0T

Note: Instructions not included. Intended for use only by properly trained specialists.
