VAG diesel engine timing tool kit 1.4 / 1.6 / 2.0 TDI CR. US7055

This one is already very suitable for a catalog — I can standardize it with the previous ones so everything looks like a single technical database.

Timing tool set – VAG 1.4 / 1.6 / 2.0 TDI CR

Description:
Tool kit designed for Audi, Seat, Škoda, and Volkswagen Common Rail (TDI CR) diesel engine timing belt replacement, crankshaft and camshaft locking, and fuel system component synchronization.

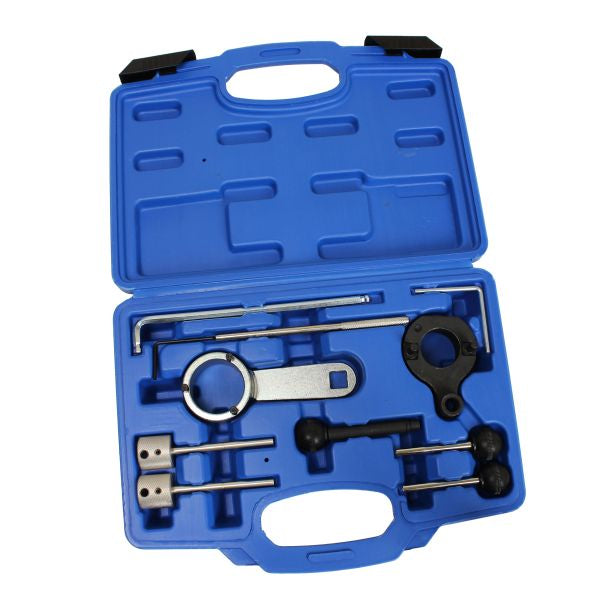

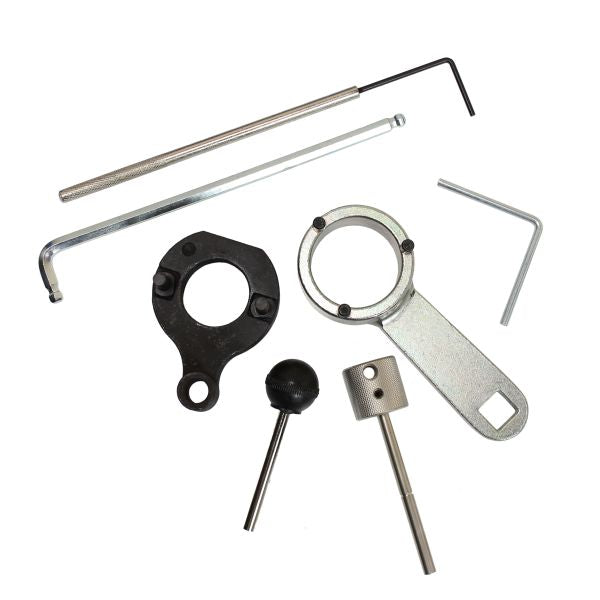

Set contents:

• 2.5 mm timing belt tensioner locking tool

• 6 mm ball-end hex key

• 8 mm hex key

• 2 × fuel pump locking and camshaft alignment pins

• Auxiliary belt tensioner pin

• Camshaft / crankshaft timing pin

• Crankshaft timing tool and locking pin

• High-pressure fuel pump sprocket holding tool

OEM References:
T10490, T10051, T10060A, T10264

Application:

• VW: Golf SV/Sportsvan, Golf VII, Golf VII Estate/Wagon, Polo

• SEAT: Leon, Leon ST

• Škoda: Octavia III

• Audi: A3, A4, A5, A6, Q5, TT (various body versions)

Engines:

• 1.4 TDI CR

• 1.6 TDI CR (including BlueMotion, GreenLine, Ecomotive)

• 2.0 TDI CR (including RS, Ultra versions)

Engine codes:
CKFB, CKFC, CLHA, CLHB, CNHA, CNHC, CRBC, CRBD, CRFA, CRFC, CRKA, CRKB, CRLB, CRLC, CRMB, CRVA, CRVC, CSUA, CSUB, CUNA, CUPA, CUTA
